Vacuum Ejectors
In-line Type Vacuum Ejector ZU□A
 | ・Compact and Lightweight O.D.: ø10.4, Weight: 3.9 g, Overall length: 52 mm ・Port size ø4, ø6 One-touch fitting, Rc1/8, ø5/32" ・Vacuum pressure reached [kPa] Type S: −90 Type L: −48 |
| Series | Nozzle diameter (mm) | Max. suction flow [L/min(ANR)] Type S | Max. suction flow [L/min(ANR)] Type L | Air consumption [L/min(ANR)] | Guidelines for applicable pad (mm) |
|---|---|---|---|---|---|
| ZU03SA | 0.3 | 1.8 | ― | 3.7 | 2 to 8 |
| ZU04SA | 0.4 | 3.2 | ― | 7.4 | 2 to 10 |
| ZU05□A | 0.5 | 7 | 13 | 14 | 2 to 13 |
| ZU07□A | 0.7 | 11 | 16 | 28 | 2 to 20 |

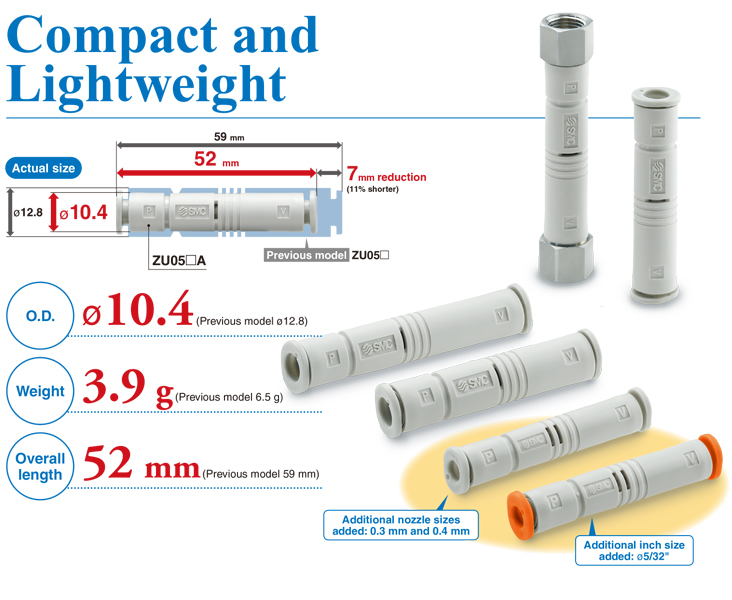

■Compact and Lightweight

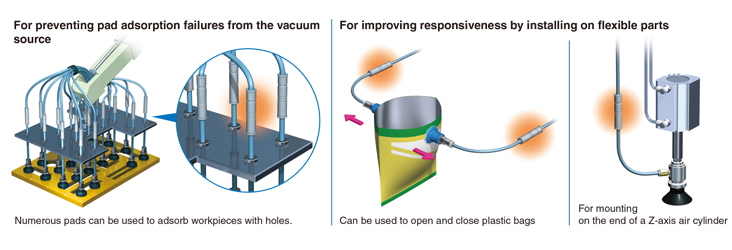

■Application Examples

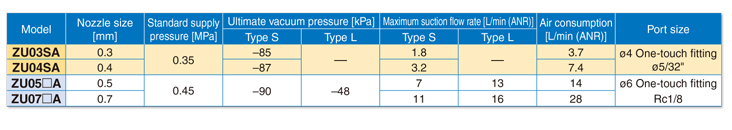

■Variations
In-line Type Vacuum Ejector ZU□A
- Product Code: ZU□A In-line Type Vacuum Ejector
- Availability: In Stock
-
-
